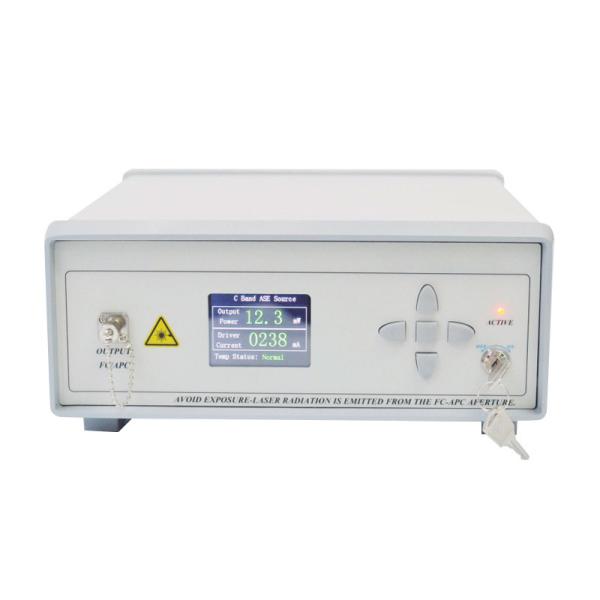

2000nm ASE Broadband Light Source

Brand Name : Sintec Optronics

Delivery Time : Stock

Payment Terms : T/T via bank

Service : Online service

Beam Quality : M2<1.2

Cooling Method : Air Cooled

Humidity : 5%-95%

Lifetime : >10000h

Mode : Single Mode

Operating Temperature : -10℃~+40℃

Output Power : 1-100W

Polarization : Linear

Power Stability : <3%

Power Supply : AC220V/50Hz

Pulse Repetition Rate : 100kHz-10MHz

Pulse Width : 20-200ps

Pump Source : Diode Pumped

Storage Temperature : -20℃~+60℃

Wavelength : 1030-1070nm

Contact Now

C-band/L-band/1064nm/2000nm ASE Broadband Light Source

1.C-band ASE Broadband Light Source

The wavelength of light source covers c-band, and the flatness of spectrum is better than 2dB.

Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1528~1563@2dB
Total Output Power mW 10/20/50/100/200/400
Power Turning Range - 10%~100% Optional
Spectral Flatness dB 1.5 (Type), 2(Max) 3dB@400mW PN
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8 hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28/PM1550
Fiber connector - FC/APC
General Parameters Bench-top Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote control Port Optional DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) Power Tunable Fiber Packaging
C=C band 10/20/50/100/200/400 T (optional) SM=SMF-28
PM=PM1550		 M=Module
B=Benchtop

2.C-band ASE Broadband Light Source in Micro Format

Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1528~1563 C band
Total Output Power mW 10/20/50 Not Tunable
Spectral Flatness dB ≤ 2
Output Isolation dB > 35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28
Fiber connector - FC/APC
General Parameters Module
Control Function TTL
Remote control Port XH2.54-4PIN
Power Supply DC5V, <10W
Dimensions 50(W)×50(D)×15(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) Packaging
C=C band 10/20/50 Mic=Micro Module

3. L-band ASE Broadband Light Source

Features Applications
n Flattened Optical Spectrum n Fiber Sensing
n Easy Operation n Medical Imaging
n Excellent Stability of Power n Test and Measurement
Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1567~1603@2dB 1565~1610nm@10dB
Total Output Power mW 10/20/50/100
Power Turning Range - 10%~100% *Optional
Spectral Flatness dB 2 (Type), 3(Max)
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28/PM1550
Fiber connector - FC/APC
General Parameters Bench-top Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote control Port Optional DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) *Power Tunable Fiber Packaging
L=L band 10/20/50/100 *T (optional) SM=SMF-28

PM=PM1550

 M=Module

B=Benchtop

4. C+L band ASE Broadband Light Source

Features Applications
n Flattened Optical Spectrum n Fiber Sensing
n Easy Operation n Medical Imaging
n Excellent Stability of Power n Test and Measurement
Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1528~1603 ≥75nm@3dB, C+L band
Total Output Power mW 10/20/50/100
Power Turning Range - 10%~100% *Optional
Spectral Flatness dB ≤3 *
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28/PM1550
Fiber connector - FC/APC

*Flatness≤2dB@10/20mW and Flatness≤6dB@200mW is also available upon request.

General Parameters Bench-top Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote control Port Optional DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) Power Tunable Fiber Packaging
CL=C+L band 10/20/50/100/200 T (optional) SM=SMF-28
PM=PM1550		 M=Module
B=Benchtop

5. 1060nm ASE Broadband Light Source

Features Applications
n Wide Spectral Range n Fiber Sensing
n Easy Operation n Medical Imaging
n Excellent Stability of Power n Test and Measurement
Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1010,1030~1080,1015 50nm@10dB
Total Output Power mW 10/20/30
Power Turning Range - 10%~100% *Optional
Spectral Flatness dB 10(Type)
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - Hi 1060 /PM980
Fiber connector - FC/APC
General Parameters Bench-top Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote control Port Optional DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power (mW) Power Tunable Fiber Packaging
1010/1060
/1150		 10/20/30/50 T (optional) SM=Hi060
PM=PM1550		 M=Module
B=Benchtop

6. 2000nm-band ASE Broadband Light Source

Features Applications
n Wide Spectral Range n Fiber Sensing
n Easy Operation n Medical Imaging
n Excellent Stability of Power n Test and Measurement
Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1850~2000
Total Output Power mW 10/20 Non-tunable
Output Isolation dB >35
Power Instability(15min.) dB ≤ ±0.02 ≤±0.5%
Power Instability(8hr) dB ≤ ±0.05 ≤±1.2%
Degree of Polarization dB ≤ 0.2
Optical Fiber - SMF-28/SM1950
Fiber connector - FC/APC
General Parameters Bench-top
Control Function Key lock switch, Push button
Remote control Port Optional
Power Supply AC100~240V, <30W
Dimensions 260(W)×320(D)×120(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%
Ordering Information/ Product Code
SMR-ASE Wavelength Output Power(mW) Fiber Packaging
2000 10 SM B=Benchtop
